Products

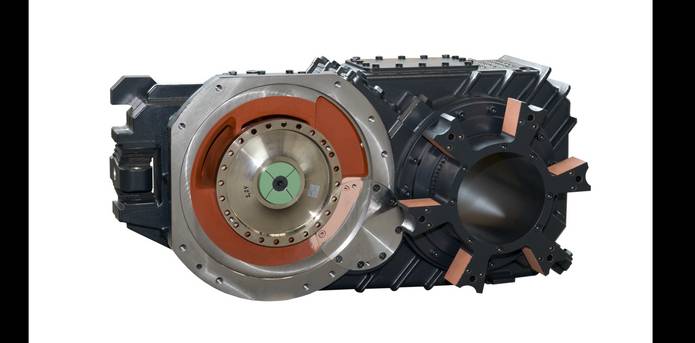

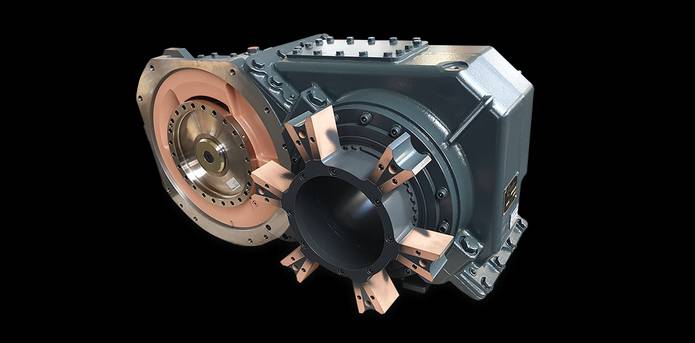

Partial suspended drive
Type: GGT275SO/598Z
Description
- Two-stage helical gearbox with hollow output shaft
- Partial suspended drive, which is supported by the wedge package coupling (1-plane coupling) on the wheel set shaft
- Motor and gearbox connected to a unit
Technical data
| Top speed (km/h) | 160 |
| Max. input torque (Nm) | 2,702 |
| Gear ratio | 5.98 |
| Max. input speed (rpm) | 6,500 |
| Reference | FPS Plus prototype |

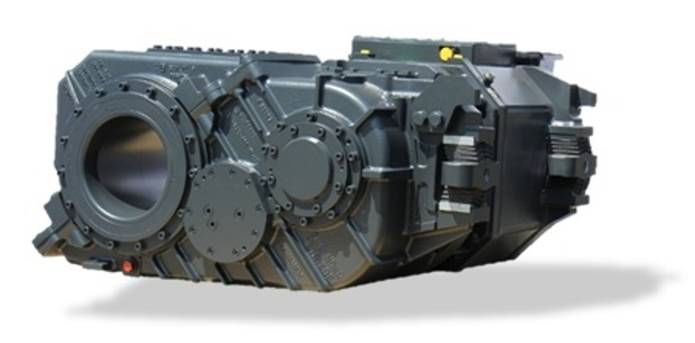

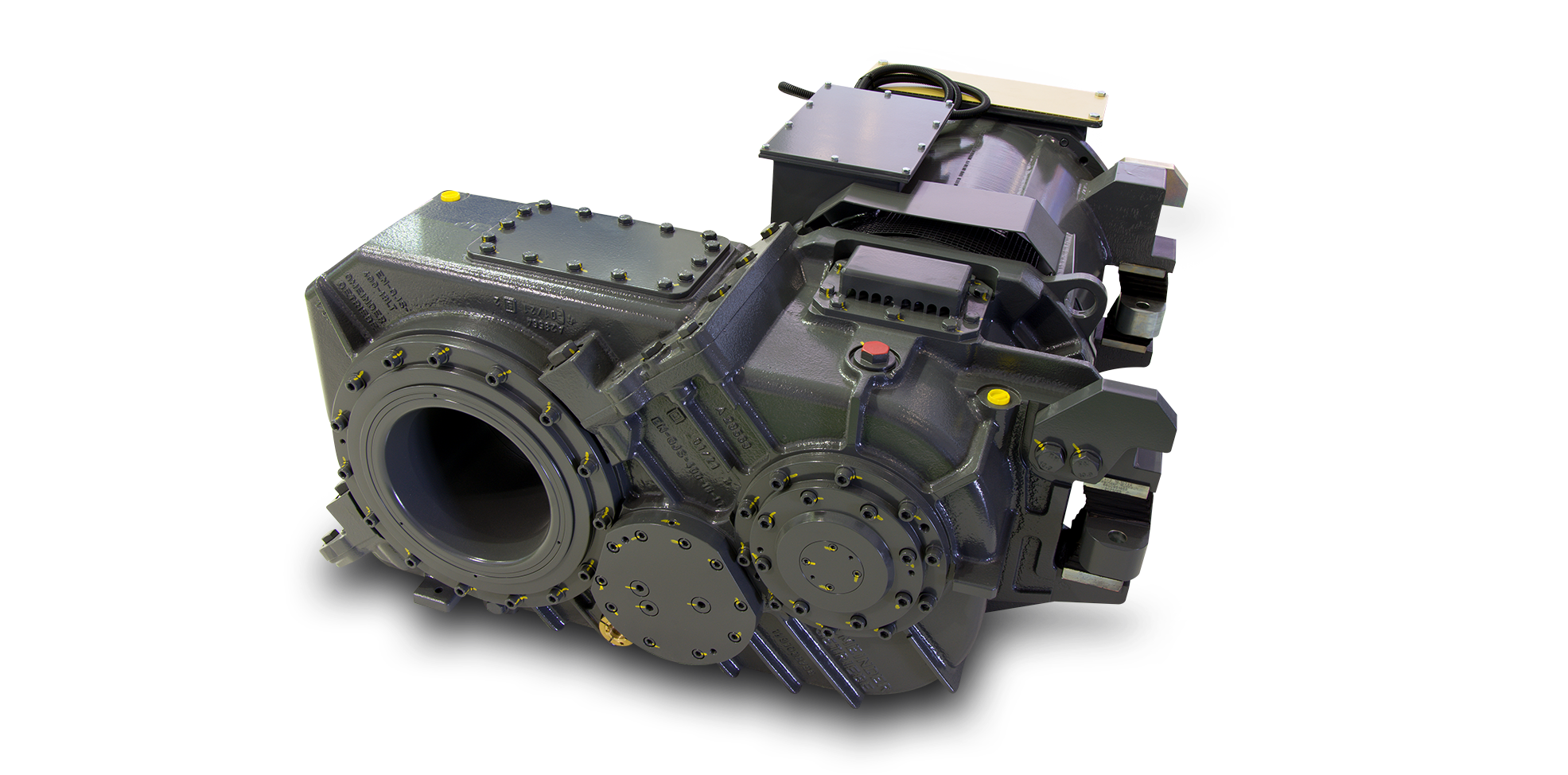

Partial suspended drive
Type: GGT275SO/598BZ
Description
- Two-stage helical gearbox with hollow output shaft
- Partial suspended drive, which is supported by the wedge package coupling (1-plane coupling) on the wheel set shaft
- Motor and gearbox connected to a unit
Technical data
| Top speed (km/h) | 160 |
| Gear ratio | 5.49 |
| Max. input speed (rpm) | 5,970 |

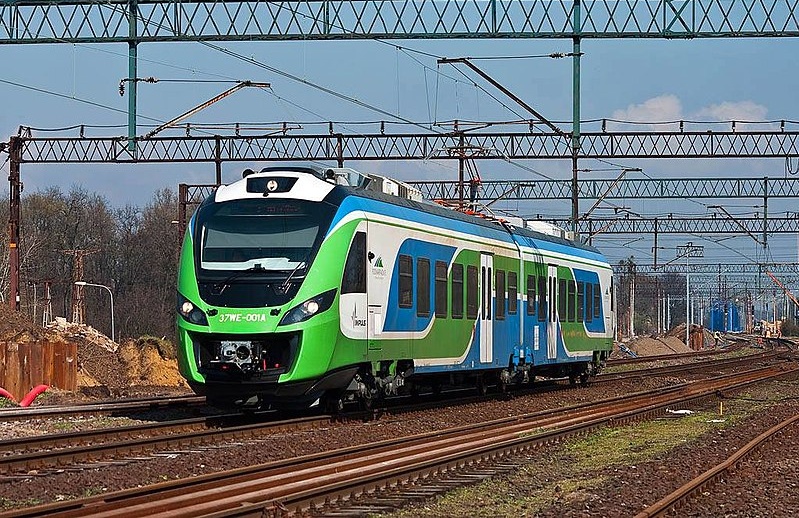

| Reference | Impuls 37WE |

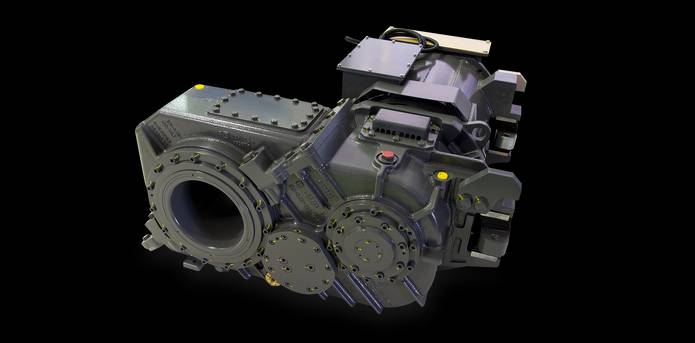

Partial suspended drive
Type: GGT275SO/598B
Description
- Two-stage helical gearbox with hollow output shaft
- Partial suspended drive, which is supported by the wedge package coupling (1-plane coupling) on the wheel set shaft
- Motor and gearbox connected to a unit
Technical data
| Top speed (km/h) | 160 |
| Gear ratio | 5.49 |
| Max. input speed (rpm) | 5,986 |
| Reference | Impuls 36WEd |

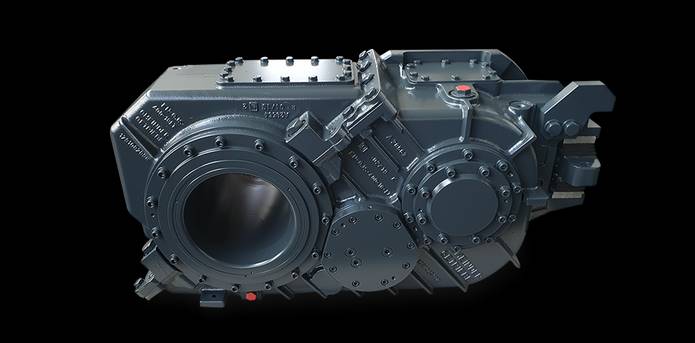

Partial suspended drive
Type: GGT275SO/549
Description
- Two-stage helical gearbox with hollow output shaft
- Partial suspended drive, which is supported by the wedge package coupling (1-plane coupling) on the wheel set shaft
- Motor and gearbox connected to a unit
Technical data
| Top speed (km/h) | 160 |
| Gear ratio | 5.49 |
| Max. input speed (rpm) | 5,986 |
| Reference | PESA 27WE |
Partial suspended drive
Type: GGT275SO/549D
Description
- Two-stage helical gearbox with hollow output shaft
- Partial suspended drive, which is supported by the wedge package coupling (1-plane coupling) on the wheel set shaft
- Motor and gearbox connected to a unit
Technical data
| Top speed (km/h) | 160 |
| Gear ratio | 5.49 |
| Max. input speed (rpm) | 5,611 |
| Reference |

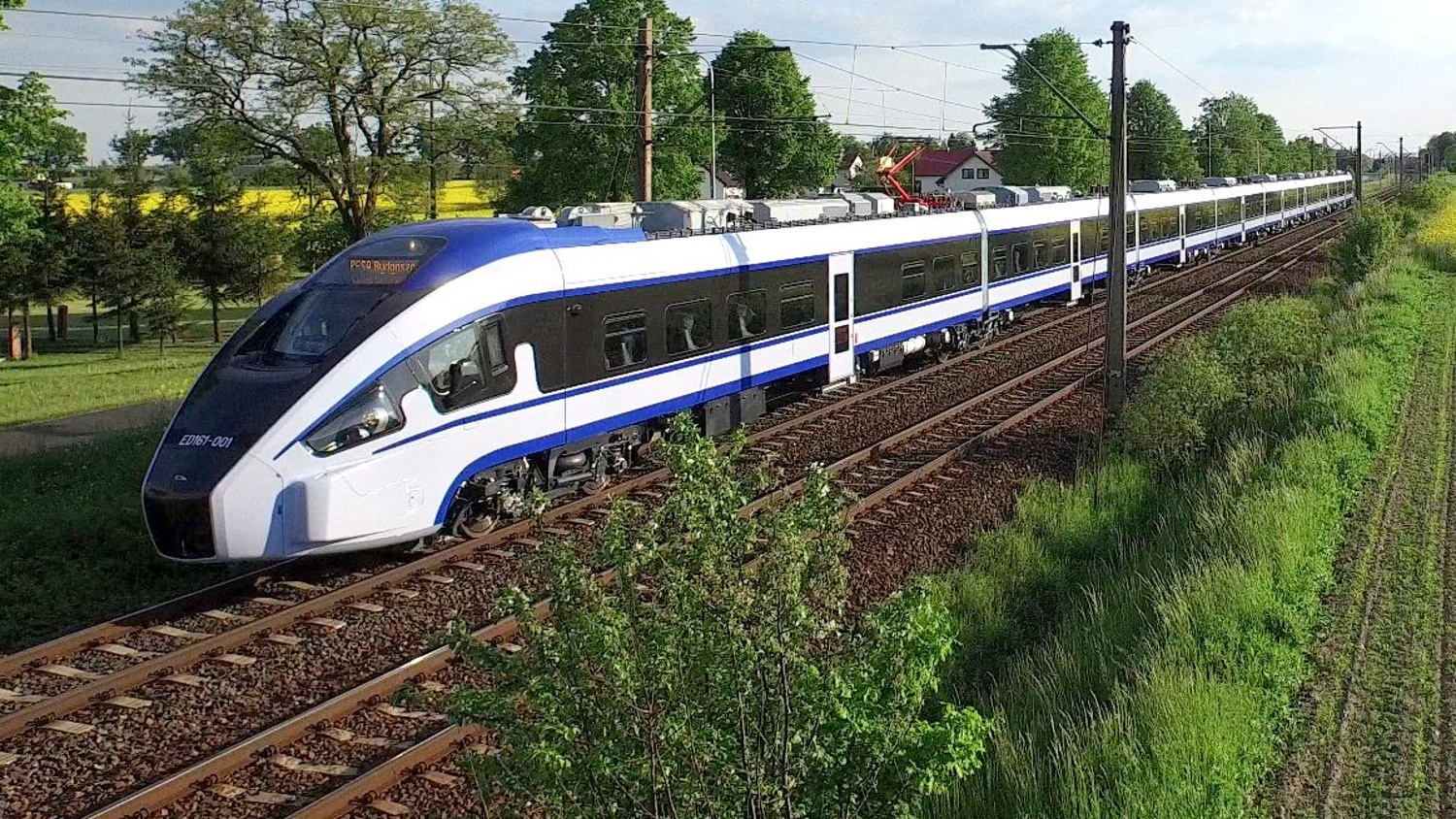

PESA DART (IC Traffic) |
Single stage solid shaft gearbox
Type: GGT200S/368
Description
- Single-stage helical gearbox
- Axle-hung gearbox with tooth coupling towards the motor
- Simplest configuration of a helical gearbox
| Top speed (km/h) | 160 |
| Gear ratio | 3.68 |
| Max. input torque (Nm) | 4,060 |
| Max. input speed (rpm) | 3,720 |
| Reference |
NSB Class BM70 |
